Features:

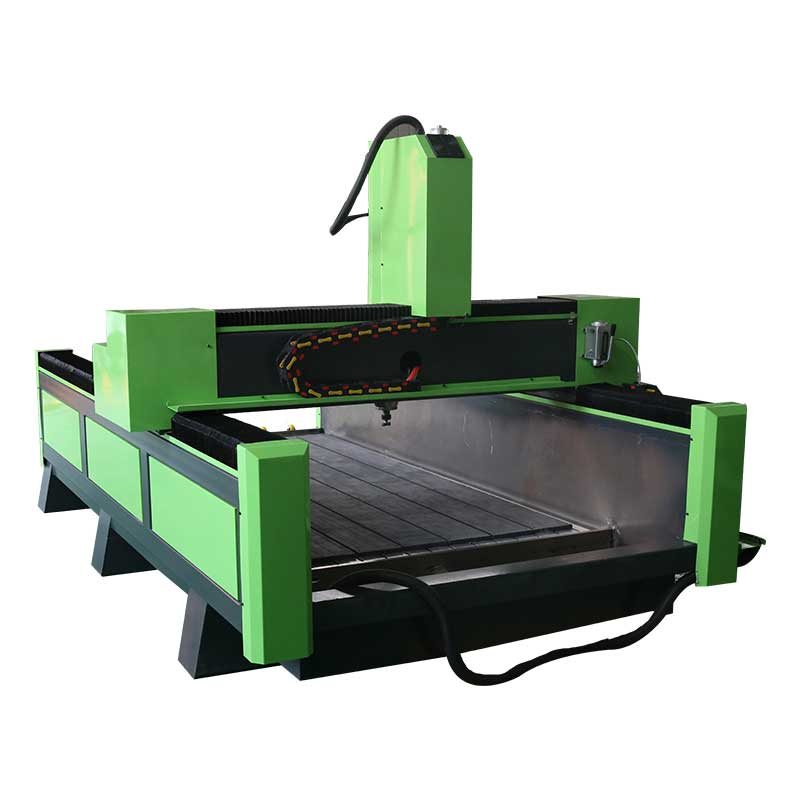

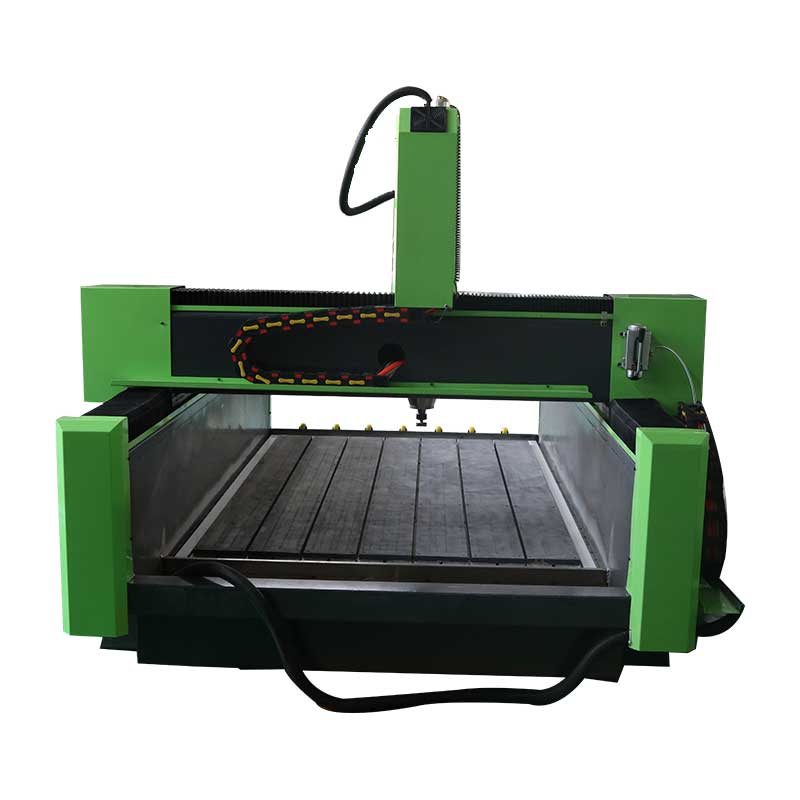

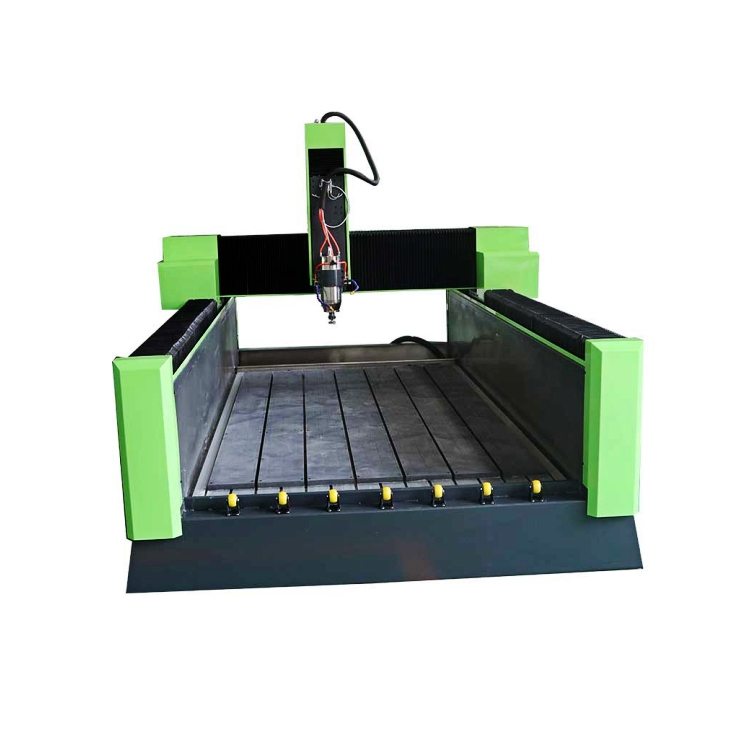

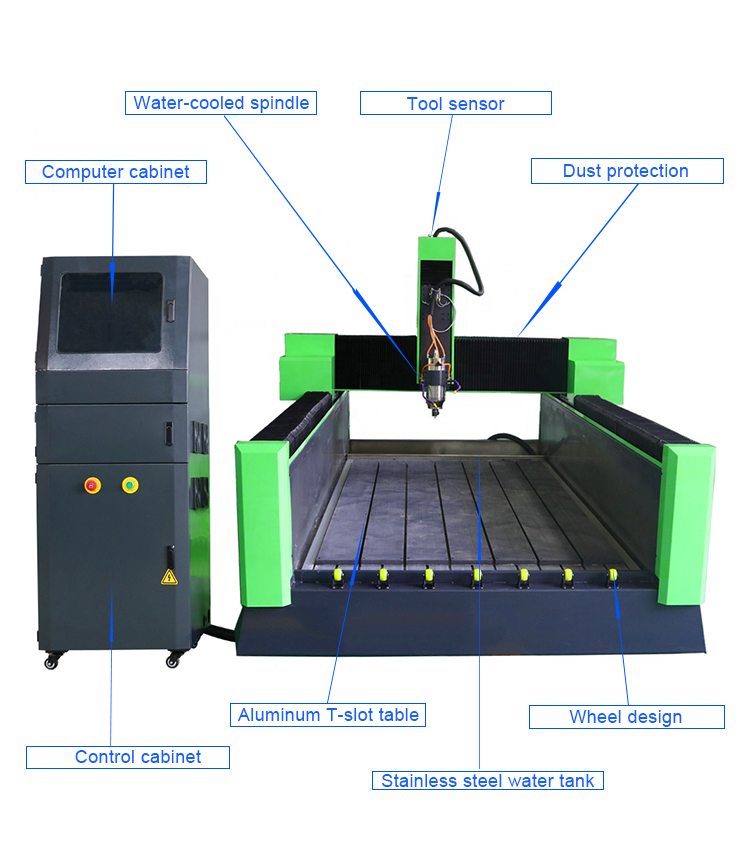

1. 1325 stone CNC Router is stone engraving CNC Machine with heavy duty design,welded with thickened square tube T-bed, strong and durable, 3 axis with dust proof, water tank with water cooling sprayer for cooling when working, Hiwin 25mm square rail and high speeding motor & driver, the machine has big loading capacity,stable operation, and longer time working;

2. Professional NC-Studio / Richauto Panel control system, water cooling spindle 5.5KW, long working life, low noise, strong cutting ability;

3. Two-way tool cooling system can effectively improve tool life;

4. Wheels on the front of the table make the load heavy stone easy;

5. Electronic control components from famous brand in China such as CHNT / DELIXI company.

6. Auto Oil-filling System for gularly maintenance (lubricating) is so convenient.

7. Software compatibility is good and can be compatible with many kinds of CAD/CAM design software such Typ3/Artcam.


Model

1325

Certificate

CE

Working Size

1300×2500×400мм

Frame

Welded Structure

Guide Rails

Square Rails Hiwin 25mm

Transmission

X Y Rack gears , Z TBI Ball screw

Motor

Stepper motor & driver (Optional servo motor)

Cabinet

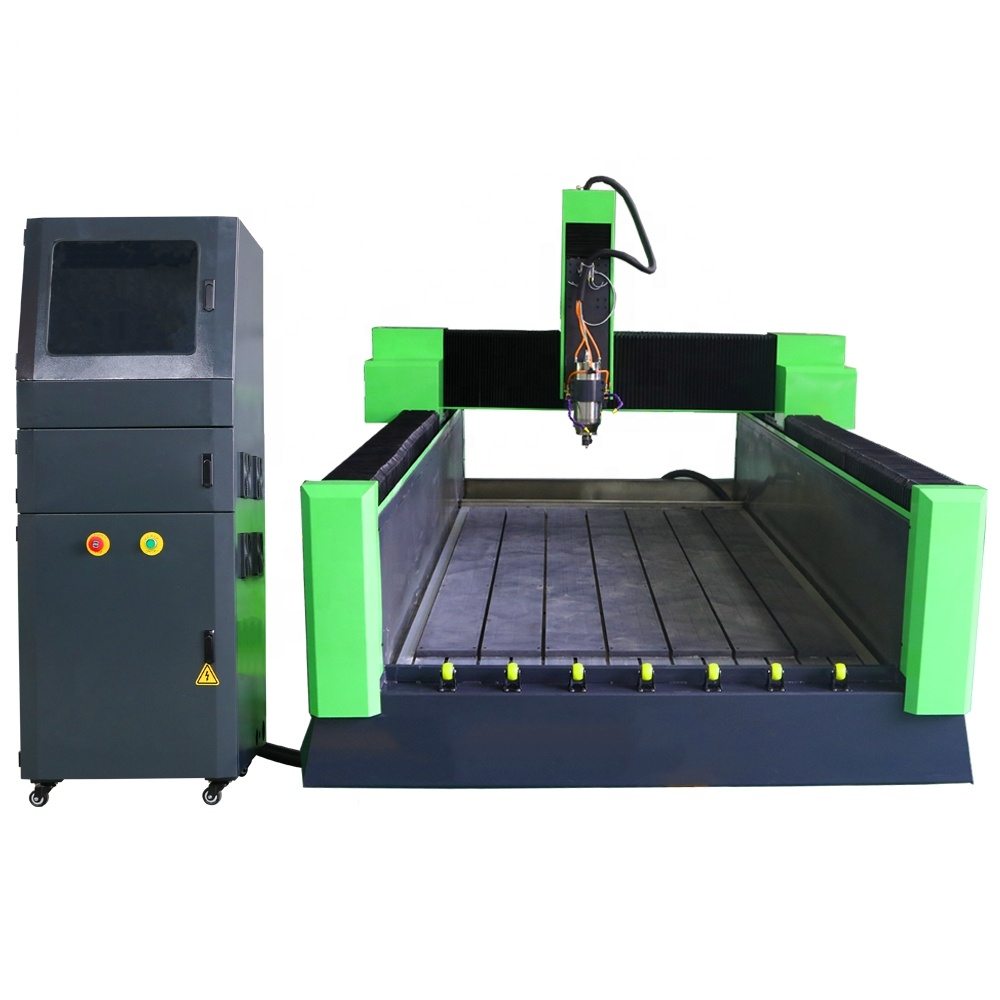

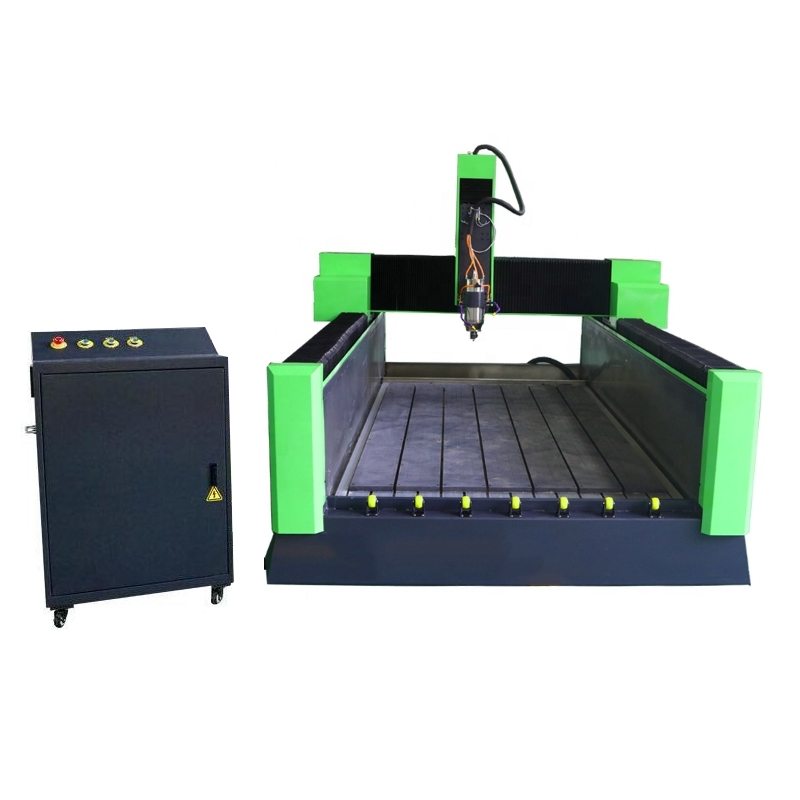

Independent Control Cabinet

Control system

NC-Studio / Rich auto A11/A18 DSP/Mach3 etc

Moving Speed

Max 20м / min

Engraving Speed

Max 15м / min

Spindle

HQD 5.5KW water cooling,ER 25

Inverter

5.5KW BEST

Spindle speed

6000-24000 rpm

Table

Aluminum T-slot

Lubrication

Centralized Lubrication

Software

ARTCAM/ Ucancam/Type3

Working Voltage

380V ±10%, 50Hz/60Hz

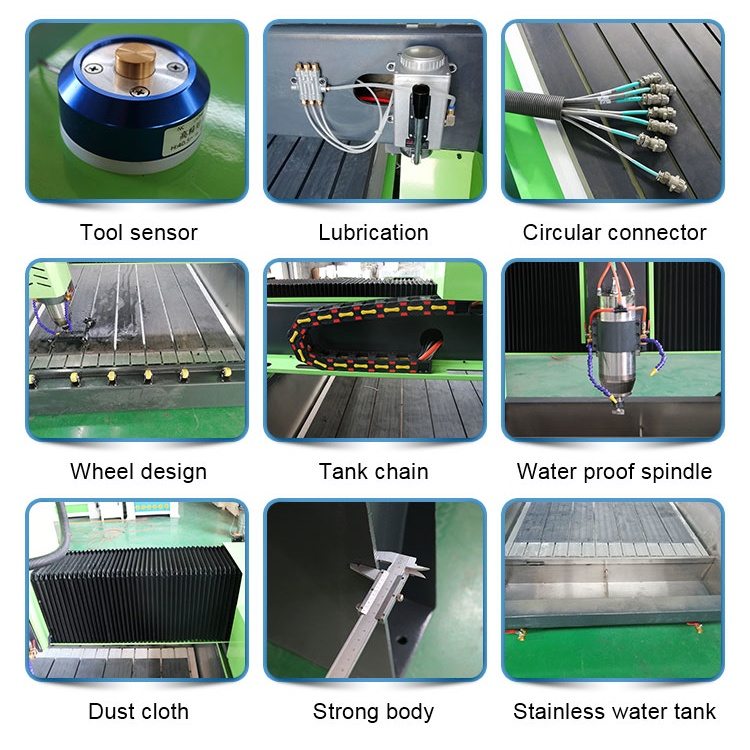

Detail (2).jpg

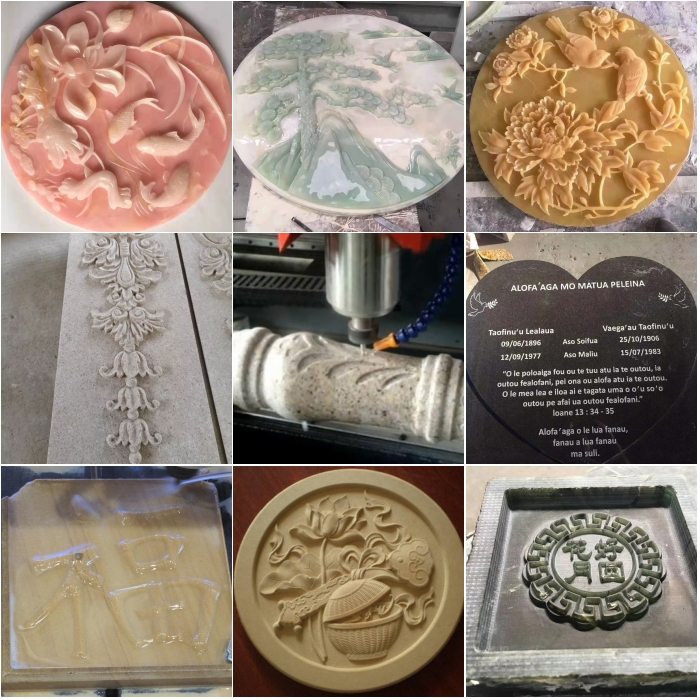

Applications:

Applicable to stone industry, stone tablet processing industry, art relief, advertising industry, decoration and decoration industry, ceramics industry.

Applicable materials:Marble, granite, jade, bluestone, Blackstone and other stone materials, as well as ceramics, glass, plexiglass, PVC board, aluminium-plastic board, bamboo and wood materials.

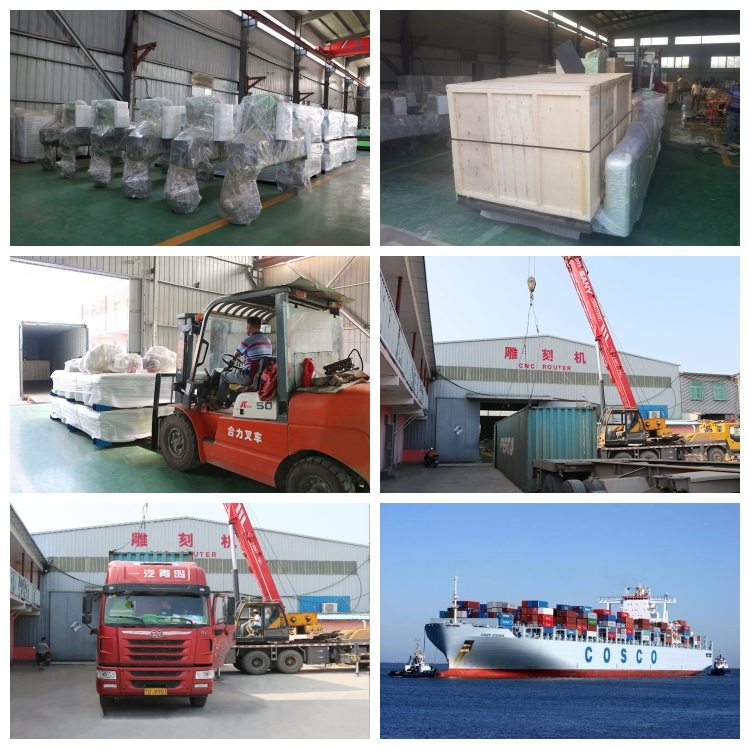

Packaging :

  1. Whole film packaging machine

  2. Anti-collision package edge

  3. Fumigation-free plywood wooden box with iron binding belt

  4. According to customer's requirements for loading the whole container or LCL at domestic port


photobank (6).jpg
