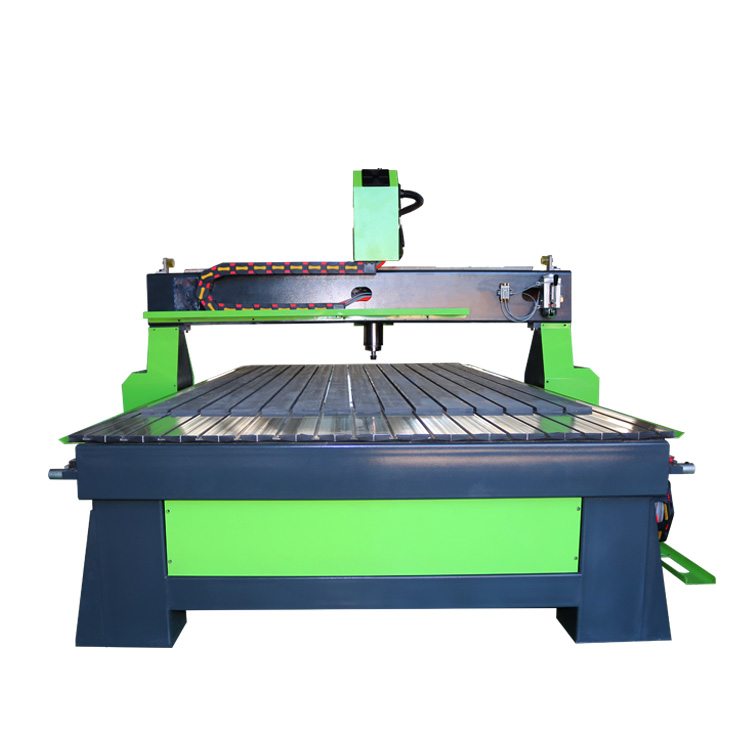

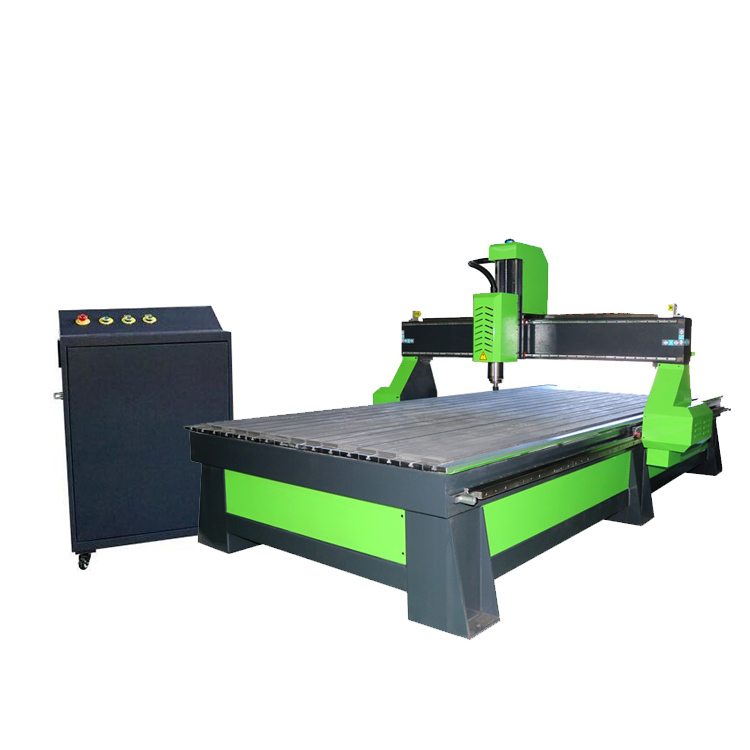

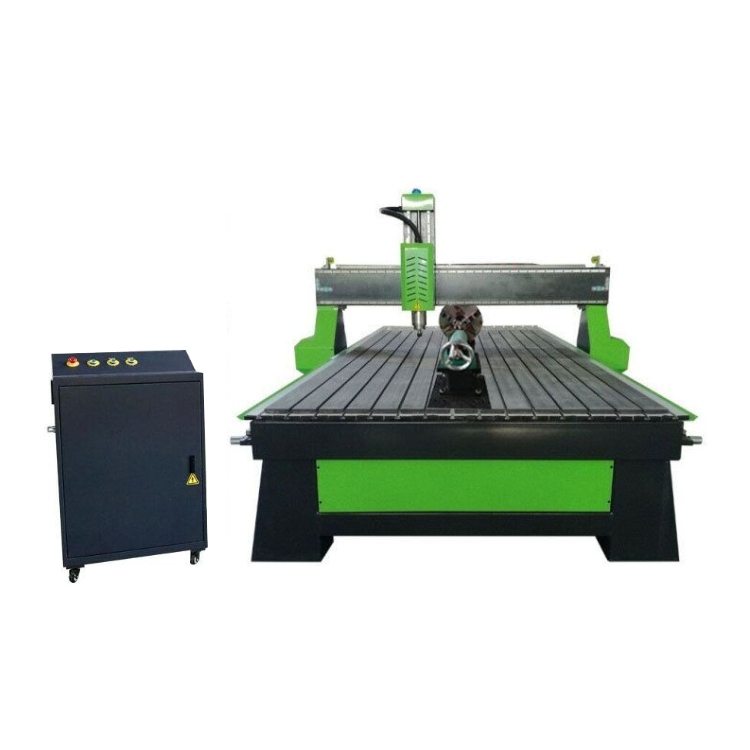

4 Axis CNC Router machine 1325 for woodworking
4 Axis CNC Router machine 1325 for woodworking
4 Axis CNC Router machine 1325 for woodworking
4 Axis CNC Router machine 1325 for woodworking
4 Axis CNC Router machine 1325 for woodworking
4 Axis CNC Router machine 1325 for woodworking

4 Axis CNC Router machine 1325 for woodworking

порт:Qingdao,Shanghai,Ningbo,Tianjin,Guangzhou,Yiwu etc

Условия оплаты:L/C,T/T

Отправить запрос сейчас

  • Описание оборудования
  • Технические характеристики
  • Разделение и Отгрузка
  • Качественное обслуживание

Features:

1. This model is one of classic and best selling cnc router, made of thickness square tube welded bed, imported square rail and high speeding stepper motor & driver. It can do cutting and engraving many materials, such as MDF, Acrylic, wood, PVC, etc. It’s widely used in advertising and woodworking industries.

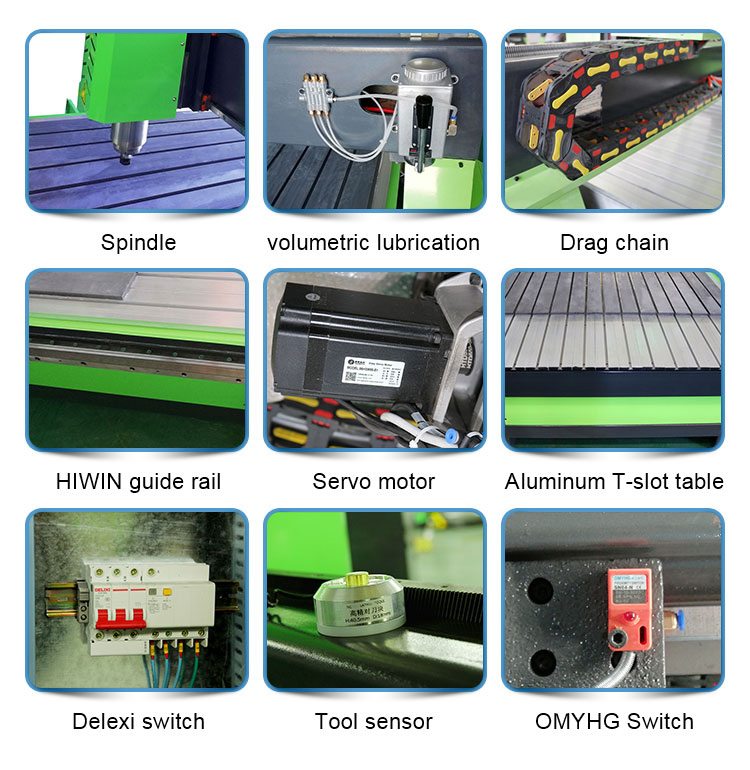

2.With China Well-known brands stepper motors and drivers, Hiwin linear guide rail, XY axis gear and rack transmission,Z axis TBI higher precision Ball Screws, ensure fast speed, big loading capacity, low noise, and longer time working;

3. Professional NC-Studio / Richauto DSP Panel control system, Air cooling spindle 3.5KW or 6KW, long working life, low noise, strong cutting ability.

4.Vacuum and T-slot combined worktable can both absorb big materials by vacuum power and fix small materials by clamps.

5. Electronic control components from famous brand in China such as CHNT / DELIXI company.

6. Auto Oil-filling System for gularly maintenance (lubricating) is so convenient to use.



Applications:

1. Wood industry: wood furniture making, 3d wood relief carving, wooden craftwork production Speakers, game consoles cabinets, computer tables, sewing machine table etc.

2. Advertising products industry: 3D letters sign making, acrylic cutting and engraving.

3. Board processing industry: insulation piece, acrylic board, plastic chemical products, PCB, compact grade laminate, ABS, PP, PE and other cementitious mixtures’s milling process.

4. Decoration industry: folding screen, wave plates, advertising boards, sign making and logo’s processing.

5. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.

6. Processing material: engraving, milling and cutting processing for acrylic, PVC, artificial stones plastics and soft metal sheets and so on.

Parameters:

Model

1325

Working Size

1302500×300mm

Frame

Welded Structure

Guide Rails

Square Rails Hiwin 20mm

Transmission

X Y Rack gears    Z axis TBI Ball screw

Motor

Stepper motor & driver (Optional Hybrid servo)

Cabinet

Independent Computer Cabinet

Control system

Rich auto DSP Panel /Mach3/NK105 etc

Moving Speed

Max 25m/ min

Engraving Speed

Max 20m/ min

Spindle

3.5KW air cooling Spindle(Optional 4.5KW,5.5KW, 6KW)

Spindle speed

0-18000 rpm

Table

Aluminum T-slot table

Lubrication

Centralized Lubrication

Software

Type3 / ARTCAM/ Ucancam

Working Voltage

220V/380V,±10%, 50Hz/60Hz

Samples:


rotary 2.jpg




Packaging :

  1. Whole film packaging machine

  2. Anti-collision package edge

  3. Fumigation-free plywood wooden box with iron binding belt

  4. According to customer's requirements for loading the whole container or LCL at domestic port
